Used Actox ABE16KXF 16W KU-Band BUC

Categories: Amplifiers & Accessories, KU-Band Amplifiers Tag: KU-Band amplifier
Manufacturer: Actox

Description

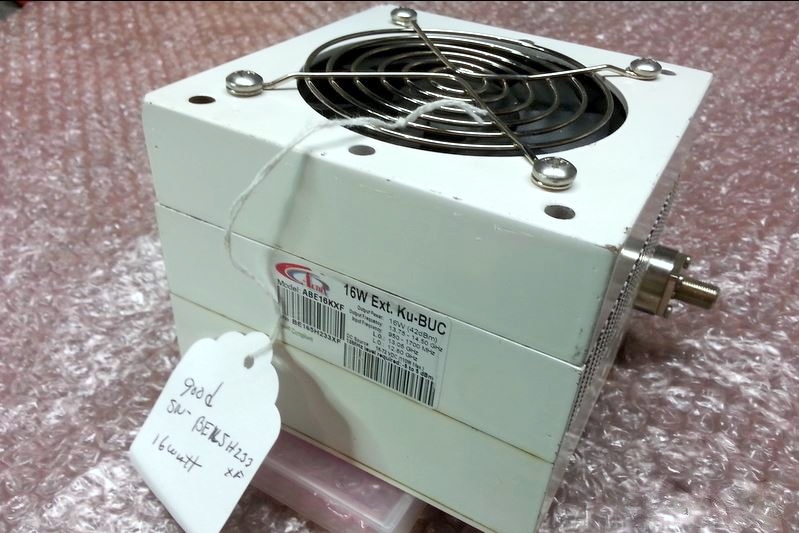

Used Actox 16W KU-Band BUC. The frequency range is 13.75 to 14.5 GHz. Tested and guaranteed to be in good working condition.

This smallest and lightest 16W L-To Ku-Band Block Up Converter is designed to be mounted on a feed horn. The unit is ideal for portable and mobile applications. Double – L.O. feature makes unit universal for Ku-Band requirements. It can be powered either with 24/48 VDC or 110/220 VAC and consumes less than 127W

KEY FEATURES
♦ Output frequency 13.75-14.50 GHz
♦ Smallest and lightest
♦ Double – L.O. (electronically and manually switchable
12.80 / 13.05 GHz)
♦ Auto-ranging and auto-detected 18-75 VDC or 80-240
VAC power options
♦ Incomparable low power consumption (127W max)
♦ Digital temperature compensation
♦ L.O. lock and amplifier LEDs
♦ Field-exchangeable (F/N) IF connector
♦ M&C – combined RS-232/485/FSK (optional)
♦ Internal 10MHz high stability 10-8 reference (optional)
♦ Three-year warranty
♦ RoHS compliant

This smallest and lightest 16W L-To Ku-Band
Block Up Converter is designed to be mounted on
a feed horn. The unit is ideal for portable and
mobile applications. Double – L.O. feature makes
unit universal for Ku-Band requirements. It can be
powered either with 24/48 VDC or 110/220 VAC
and consumes less than 127W.
